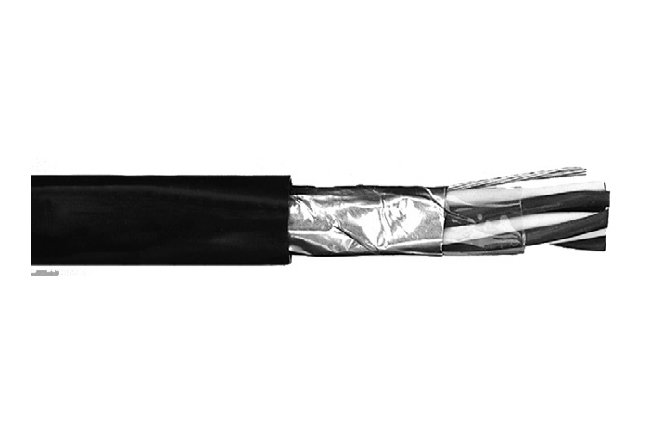

PLTC 300V Overall Shield PVC/PVC
Conductor: Bare, annealed copper per ASTM B3. Class B stranding per ASTM B8.
Insulation: Lead-free Polyvinyl Chloride (PVC). Color-coded per ICEA Method 1: Pairs – black and white; Triads – black, white and red. One conductor in each pair or triad is printed alphanumerically for easy identification.
Jacket: Lead-free, sunlight-resistant Polyvinyl Chloride (PVC).
Shield: Overall shielded pairs/triads. Overall shield is aluminum/polymer in contact with stranded tinned copper drain wire.
Voltage: 300V
PLTC 300V Pairs Individual & Overall Shield PVC/PVC
Conductor: Bare, annealed copper per ASTM B3. Class B stranding per ASTM B8.
Insulation: Lead-free Polyvinyl Chloride (PVC). Color-coded per ICEA Method 1: Pairs – black and white. One conductor in each pair is printed alphanumerically for easy identification; Triads – black, white and red. One conductor in each pair or triad is printed alphanumerically for easy identification.
Jacket: Lead-free, sunlight-resistant Polyvinyl Chloride (PVC).
Shield: Individual and overall shielded pairs. Individual pairs are 100% shielded with aluminum/polyester in contact with stranded tinned copper drain wire. Overall shield is aluminum/polymer in contact ith stranded tinned copper drain wire.
Voltage: 300V
PLTC 300V Triads Individual & Overall Shield PVC/PVC
Conductor: Bare, annealed copper per ASTM B3. Class B stranding per ASTM B8.
Insulation: Lead-free Polyvinyl Chloride (PVC). Color-coded per ICEA Method 1: Triads – black, white and red. One conductor in each triad is printed alphanumerically for easy identification.
Shield: Individual and overall shielded triads. Individual triads are 100% shielded with aluminum/polyester in contact with stranded tinned copper drain wire. Overall shield is aluminum/polymer in contact ith stranded tinned copper drain wire.
Jacket: Lead-free, sunlight-resistant Polyvinyl Chloride (PVC).
Voltage: 300V
TC 600V Pairs Individual & Overall Shield PVC/PVC
Conductor: Bare, annealed copper per ASTM B3. Class B stranding per ASTM B8.
Insulation: Flame-retardant Polyvinyl Chloride (PVC) with clear Polyamide (nylon). Color-coded per ICEA Method 1: Pairs – black and white. One conductor in each pair is printed alphanumerically for easy identification.
Shield: Individual and overall shielded pairs. Individual triads are 100% shielded with aluminum/polyester in contact with stranded tinned copper drain wire. Overall shield is aluminum/polymer in contact ith stranded tinned copper drain wire.
Jacket: Lead-free, sunlight-resistant Polyvinyl Chloride (PVC).
Voltage: 600V
TC 600V Triads Individual & Overall Shield PVC/PVC
Conductor: Bare, annealed copper per ASTM B3. Class B stranding per ASTM B8.
Insulation: Flame-retardant Polyvinyl Chloride (PVC) with clear Polyamide (nylon). Color-coded per ICEA Method 1: Triads – black, white and red. One conductor in each triad is printed alphanumerically for easy identification.
Shield: Individual and overall shielded triads. Individual triads are 100% shielded with aluminum/polyester in contact with stranded tinned copper drain wire. Overall shield is aluminum/polymer in contact with stranded tinned copper drain wire.
Jacket: Lead-free, flame-retardant, sunlight-resistant Polyvinyl Chloride (PVC).
Voltage: 600V
TTC 600V Pairs Individual Shield FREP/CPE
Conductor: Bare, annealed copper per ASTM B3. Class B stranding per ASTM B8.
Insulation: Flame-retardant Ethylene Propylene Rubber (FR-EPR) Type II. Color-coded per ICEA Method 1: Pairs – black and white; Triads – black, white and red. One conductor in each pair is printed alphanumerically for easy identification.
Jacket: Lead-free, flame-retardant, thermoplastic Chlorinated Polyethylene (CPE).
Shield: Overall shielded pairs/triads. Overall shield is aluminum/polymer in contact with stranded tinned copper drain wire.
Voltage: 600V
TTC 600V Pairs Individual Shield FREP/CPE
Conductor: Bare, annealed copper per ASTM B3. Class B stranding per ASTM B8.
Insulation: Flame-retardant Ethylene Propylene Rubber (FR-EPR) Type II. Color-coded per ICEA Method 1: Pairs – black and white; Triads – black, white and red. One conductor in each pair is printed alphanumerically for easy identification.
Jacket: Lead-free, flame-retardant, thermoplastic Chlorinated Polyethylene (CPE).
Shield: Overall shielded pairs/triads. Overall shield is aluminum/polymer in contact with stranded tinned copper drain wire.
Voltage: 600V
TC 600V Triads Individual & Overall Shield FR-ERP/CPE
Conductor: Bare, annealed copper per ASTM B3. Class B stranding per ASTM B8.
Insulation: Flame-retardant Ethylene Propylene Rubber (FR-EPR) Type II. Color-coded per ICEA Method 1: Triads – black, white and red.
One conductor in each triad is printed alphanumerically for easy identification.
Jacket: Lead-free, flame-retardant, thermoplastic Chlorinated Polyethylene (CPE).
Shield: Individual and overall shielded triads. Individual triads are 100% shielded with aluminum/polyester in contact with stranded tinned copper drain wire. Overall shield is aluminum/polymer in contact with stranded tinned copper drain wire.
Voltage: 600V
Title Needed
Conductor: Bare, annealed copper per ASTM B3. Class B stranding per ASTM B8.
Insulation: Flame-retardant Ethylene Propylene Rubber (FR-EPR) Type II. Color-coded per ICEA Method 1: Triads – black, white and red.
One conductor in each triad is printed alphanumerically for easy identification.
Jacket: Lead-free, flame-retardant, thermoplastic Chlorinated Polyethylene (CPE).
Shield: Individual and overall shielded triads. Individual triads are 100% shielded with aluminum/polyester in contact with stranded tinned copper drain wire. Overall shield is aluminum/polymer in contact with stranded tinned copper drain wire.
Voltage: 300V
Title Needed
Conductor: Solid thermocouple extension alloy conductors per ANSI MC96.1. Stranded thermocouple extension alloys available upon request.
Insulation: 105ºC PVC. Minimum average insulation thickness for 20, 18 and 16 AWG is .0015 in. VW-1 rated conductors are available upon request.
Shield: Pairs are shielded with 100% coverage aluminum/polyester tape and include a tinned copper drain wire. Aluminum/polyester tape thickness of .00135 in. Overall shielded designs with copper tape or braided tinned copper are also available.
Jacket: 105ºC FR PVC, sunlight-resistant, thickness per UL 13 and UL 2250, footage sequentially printed. Suitable for -70ºC environment. Black 90ºC FR,
sunlight-resistant Thermoset Chlorosulfonated Polyethylene (CSPE), commonly referred to as Hypalo ®, rated Oil Res I and Oil Res II. Thermocouple extension cables use the ANSI color corresponding to the thermocouple extension alloy type contained in the construction. Additional colors are available upon request.
Voltage: 300V
Title Needed
Conductor: Solid thermocouple extension alloy conductors per ANSI MC96.1. Stranded thermocouple extension alloys available upon request.
Insulation: 105ºC PVC. Minimum average insulation thickness for 20, 18 and 16 AWG is .0015 in.
Shield: Overall shielded pairs. Overall shield is aluminum/polymer in contact with stranded tinned copper drain wire.
Jacket: 105ºC FR PVC, sunlight-resistant, thickness per UL 13 and UL 2250, footage sequentially printed. Thermocouple extension cables use the ANSI color corresponding to the thermocouple extension alloy type contained in the construction. Additional colors are available upon request.
Voltage: 600V
Title Needed
Conductor: Stranded copper conductors, PVC insulation with nylon covering on primaries, color coded, twisted into pair or triad, or groups of pairs or triads, numeric print group identification, aluminum/polyester shield and coated stranded copper drain wire over each group with 100% isolation between group shields, multiple groups assembled, aluminum/polyester shield and coated stranded copper drain wire overall, rip cord, PVC inner jacket with, wit Continuous-Lightweight-Exterior. Welded and corrugated, impervious metallic sheath with flame/chemical resistant PVC jacket.
Insulation: N/A
Jacket: N/A.
Shield: N/A
Voltage: 600V
